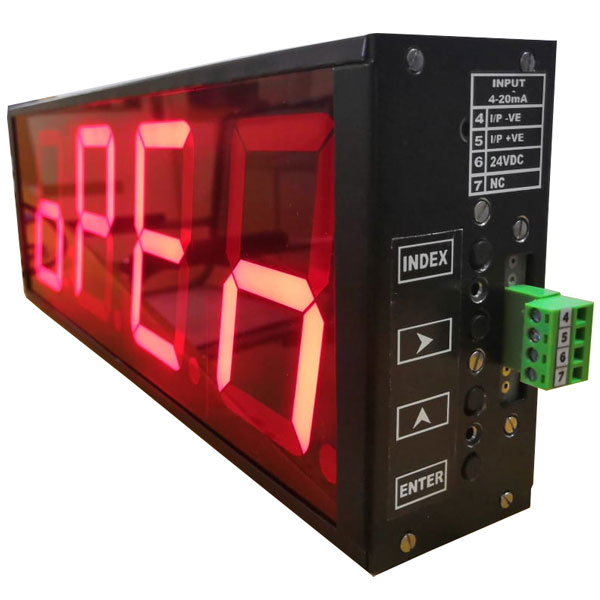

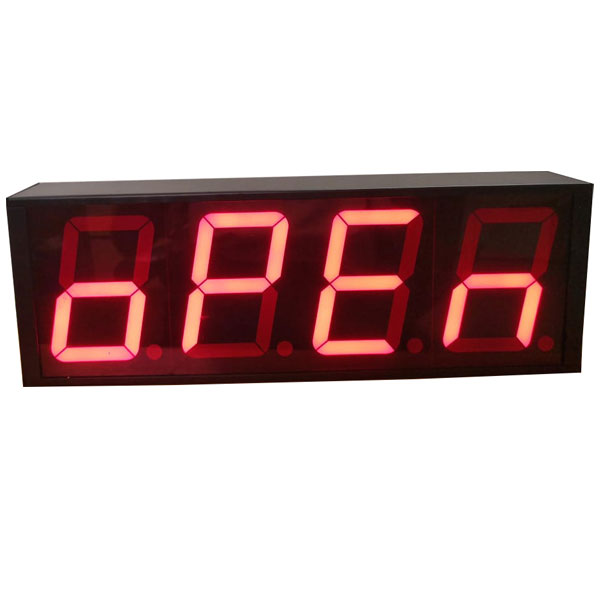

4 inch 4 Digits Display

This is a new range of products form Samyak.

Display units are microcontroller based. They are available in different sizes, mounting and with different interfaces.

General Specifications:

• Input: 4-20 mA
• Display range: -1999 to 9999
• KB: 4-keys
• Configurable parameter: Zero, Full scale
• Display: 7-Segment LED
• Size of Display digits: 2.3”, 4", 6”
• Number of Digits: 4
• Colors of Display: Red
• Output: 4-20 mA / 0-10 VDC
• Three Alarm Relays
• Communication Interface: (Optional)
  • Serial (RS232/RS485), ASCII/MODBUS
    • Master/Slave (factory configured)
  • Wireless, Ethernet, USB
• Operating voltage: (Factory configured)
  • Operating voltage: 110-230VAC +/-10% , 100 mA, 50Hz
  • 24VDC +/-10%, 1 A
• Mechanical Parameters:
  • Enclosure: General Purpose Metallic powder coated
  • Mounting: Table Top/Wall mount/Hanging
  • Size: 395 (W) mm x 135 (H) mm x 65 (D) mm

Applications:

• Auxiliary/Additional Display (with larger digits) for:
  • Process Values: Temperature, Pressure etc.
  • Electrical parameters: Power factor/Voltage/Current
  • Weight Indicator
  • Counter

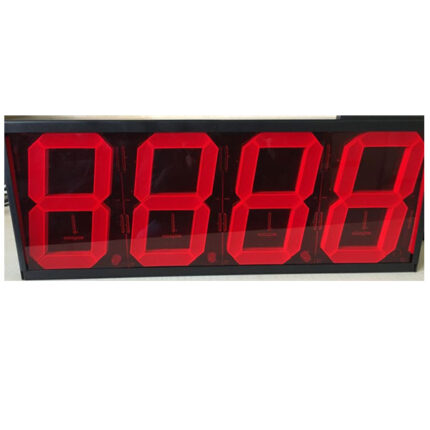

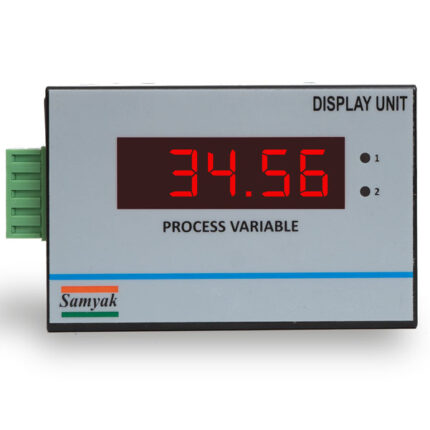

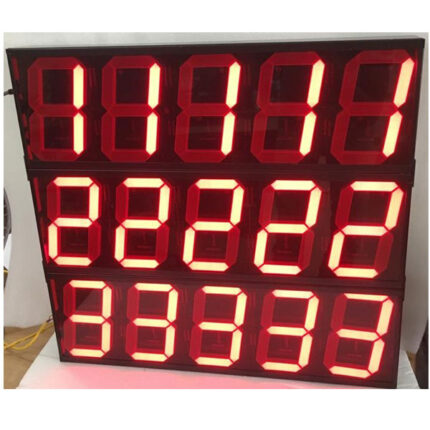

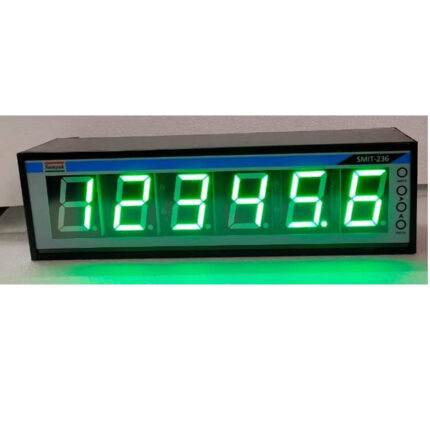

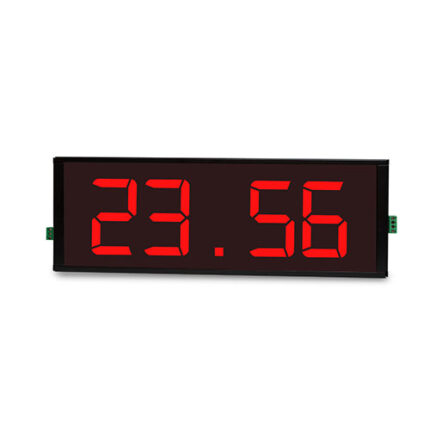

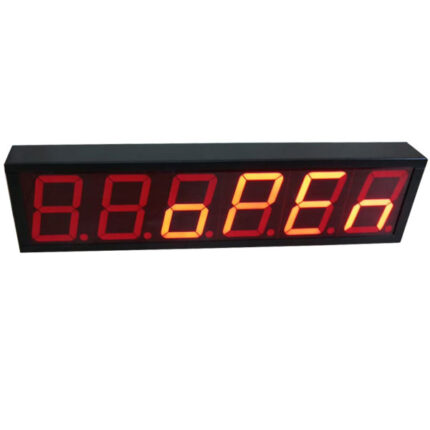

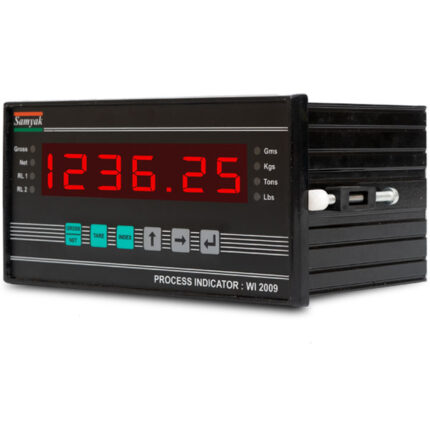

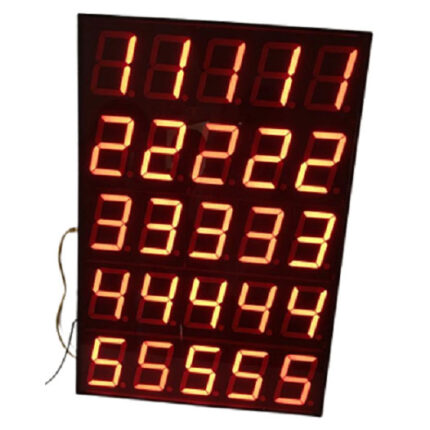

Note: Other models available: 0.56” 4/6/8 Digits, 0.8” 6 digits, 1” 4/6 digits, 2.3” 4/6 Digits 4” 4/6 Digits, 6” 4/6-Digits
