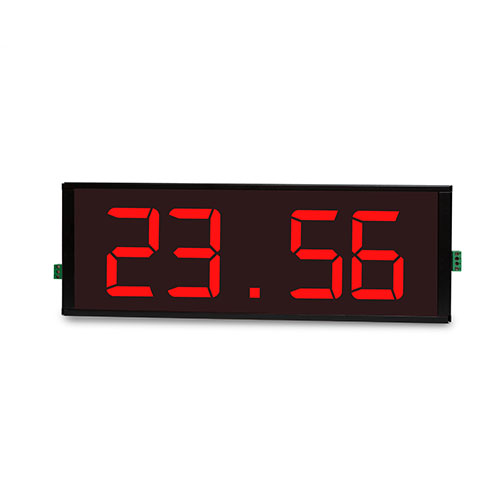

2.3 inch 4 Digits Display
This is a new range of products form Samyak.
Display units are microcontroller based. They are available in different sizes, mounting and with different interfaces.
General Specifications:
- Input: 4-20 mA
- Display range: -1999 to 9999
- KB: 4-keys
- Configurable parameter: Zero, Full scale
- Display: 7-Segment LED
- Size of Display digits: 2.3”, 4", 6”
- Number of Digits: 4
- Colors of Display: Red
- Output: 4-20 mA / 0-10 VDC
- Three Alarm Relays
- Communication Interface: (Optional)
- Serial (RS232/RS485), ASCII/MODBUS
- Master/Slave (factory configured)
- Wireless, Ethernet, USB
- Operating voltage: 110-230VAC +/-10% , 100 mA, 50Hz
- 24VDC +/-10%, 1 A
- Enclosure: General Purpose Metallic powder coated
- Mounting: Table Top/Wall mount/Hanging
- Size: 395 (W) mm x 135 (H) mm x 65 (D) mm
Applications:
- Auxiliary/Additional Display (with larger digits) for:
- Process Values: Temperature, Pressure etc.
- Electrical parameters: Power factor/Voltage/Current
- Weight Indicator
- Counter
Note: Other models available: 0.56” 4/6/8 Digits, 0.8” 6 digits, 1” 4/6 digits, 2.3” 4/6 Digits 4” 4/6 Digits, 6” 4/6-Digits
