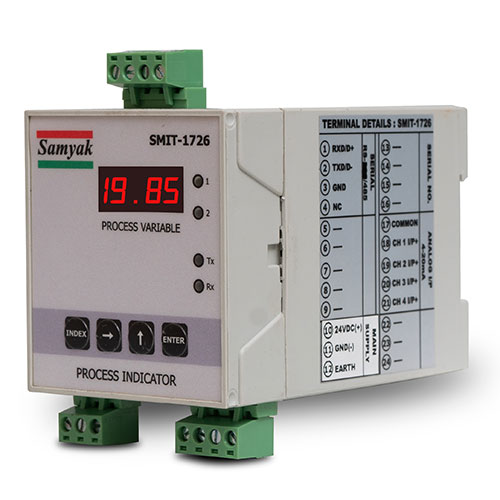

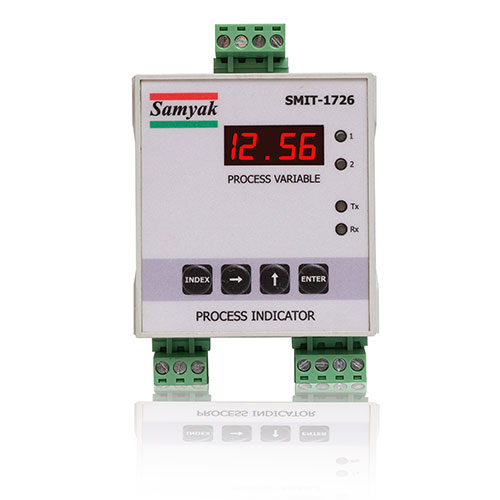

Analog to Serial Converter – SMIT 1726

This UNIT is based on a popular Microcontroller. It accepts up to 4 channels of Analog inputs. The converted data is displayed in engineering value and retransmitted as analog output for individual channel and also gives data on serial port RS-485/RS232.

Specifications:

• Input: Up to 4 channels (4 to 20 mA / 0-10 VDC)
• Interface: RS-232/485 Serial (MODBUS)
• Operating Voltage: 24VDC +/- 10%/110-230VAC (Factory configured)
• Power rating < 20 VA
• Key board: 4 keys keypad
• Display: 4 digits, 7-segment RED led
• Enclosure: General purpose, Plastic/polycarbonate, DIN rail/Wall mounting
• Dimensions:
  • 70 mm(W) x 75 mm(H) x 110 mm(D)
• Optional:
  • Analog Outputs: Up to 4 Channels: 4 to 20 mA, individually isolated

  Application:

  • Centralised monitoring of plant parameters
  • Isolator
