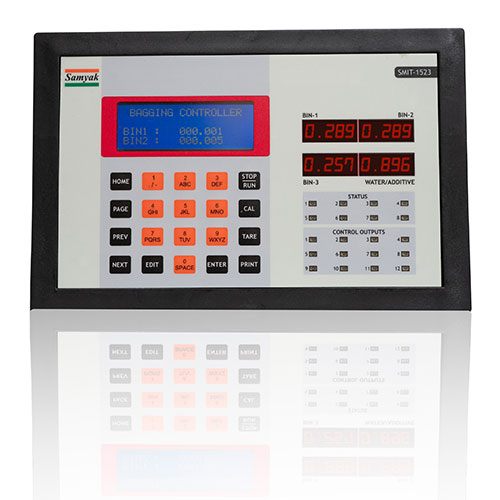

Bagging or liquid filling Controller SMIT 1523
Bagging CONTROLLER SMIT-1523 is a Micro-controller Based unit. It is configured for a concrete batch mix plant Applications. It can control feeding of multiple components With the help of load cell inputs, Status inputs and Control outputs.
SPECIFICATIONS:
- Onboard RTC
- Operating Supply: 24VDC
- Display:
- 128 x 64 Graphics LCD display with backlit
- 20 discrete LEDs for Process status indication
- 7-Segment RED LED Display, organized in 4-groups of 4-digits each to display weight of individual component (Aggregate/ Sand/ Water/ Cement)
- Keyboard: 20 keys membrane Keypad
- Load cell Inputs: Four channels
- Excitation voltage: 5VDC
- Pulse Inputs: For water feeding thro’ water meter
- Field Programmable parameters: Set points/Offset of all component, Filter, Various timings for batching sequence
- Control Outputs: Up to 24 relay outputs
- Control of Component Feeding Gate
- Discharge, Alarm, Mixer Gate On/Off
- Status: Batch Over, Batch Ready
- Digital Inputs: Up to 24 digital inputs to read status & remote commands: Auto/Manual/Semi Auto Switch, Bucket Top/Bottom, Start, Stop Commands
- Calibration: Offset & Span calibration through software using keypad
- Reports: Batch wise online print, offline print, summary print, recipe print etc...
- Interfaces Options:
- Serial RS-232/RS-485 for Printer/Computer
- USB port for PEN Drive (Mass data storage)
- GSM Modem to connect with Cloud/Server
- Mechanical:
- Panel Mount SS Enclosure
- Dimensions:
- Outer: 244 (W) x 160 (H) x 100 (D)
- Cutout: 208 (W) x 116 (H)
