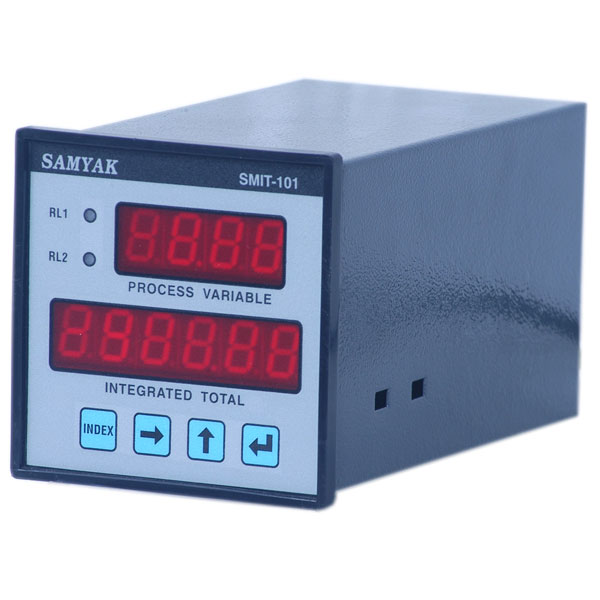

Flow Indicator Totaliser SMIT 101

THIS IS A MICROCONTROLLER BASED UNIT. The unit accept various field input. It display engineering value of the input & performs integration. The unit can be used in batching applications.

SPECIFICATIONS:

• Input: 4.0-20.0mA/0-20mA/0-5V/1-5V (factory set). PULSE INPUT: 0-10 KHz
• Operating Supply:110-230 VAC +/-10%
• Transmitter Power Supply: +24V DC +/- 5%, 50 mA
• Field Programmable parameters:
  • Zero, Full scale, Decimal position, Time Base for Totaliser, Alarm settings
• Reset Totaliser: Through KB (Password Protected)
• Full Scale range: 0 to 9999
• Display: Process variable: Four Digit 0.56" 7-Segment Red LED
• Totaliser: Six digit 0.56" 7-segment Red LED type
• Zero and Full Scale Values are stored in serial EEPROM.
• Calibration: Through software using keypad
• Options:
  • Serial Interface: RS-232/RS-485 (MODBUS)
  • Retransmission: 4.0 to 20.0 mA Isolated Proportional to Indication
  • Relays: Two Alarm relays of 2.0A/230VAC 1 C/O type
• Mechanical Data: Mounting: Panel mounting
  • Cutout size: 92 mm x 92 mm
  • Outer dimension: 96 mm x 96 mm x 160 mm (Depth)
• ENCLOSURE:METALISED DIN STANDARD (GENERAL PURPOSE) PANEL MOUNTING TYPE
