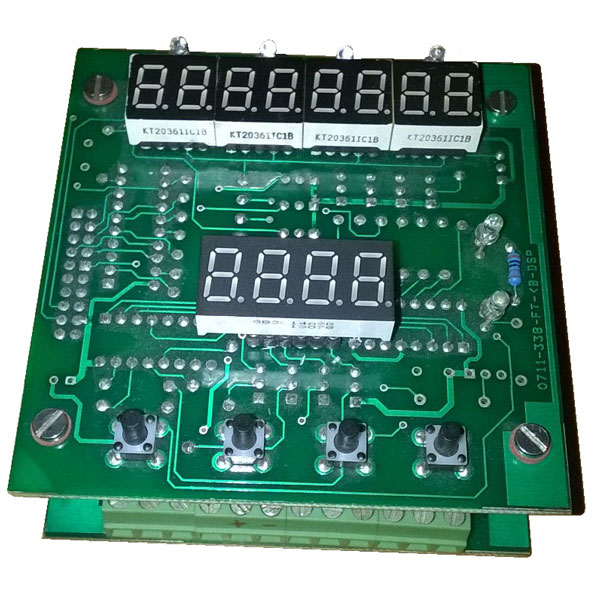

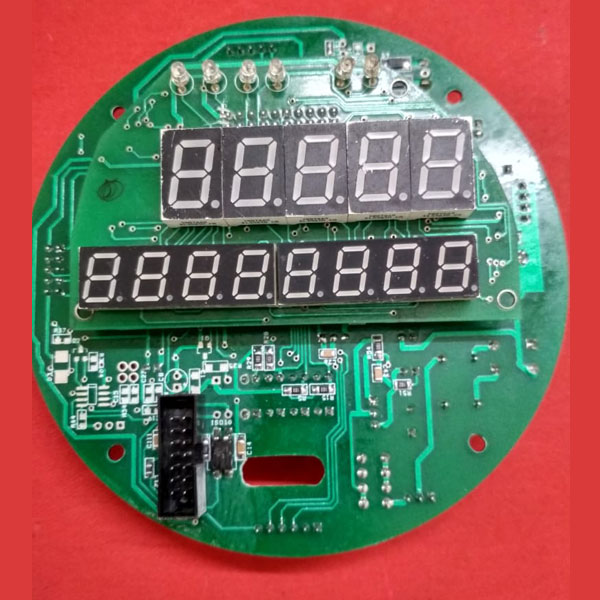

Flow Indicator Totaliser SMIT 1508 (PCB), Gujarat, India

Flow Indicator Totaliser SMIT 1508 (PCB)

MICROCONTROLLER BASED
Input: Pulse (0 to 10 KHz) or Analog: 4.0-20.0mA, 0-20 ma, 0-5 V, 1-5 V
Isolation between input & Output
Four Keys
Dual 7-segment red LED Display:
- Flow rate: 0.56”, 4/5 –digit (Display range: 0 to 19999)
- Totaliser: 0.39”, 8-digit (Display range: 0 to 99999999)
Operating Voltage: 24 VDC / 12 VDC
Transmitter Power supply: 24VDC/50 mA
Programmable parameters: Zero, Full scale, Decimal position, Time Base for Totaliser, Conversion factor, K-Factor
Non-volatile Memory for storing totaliser & other parameters
Totaliser reset thro’ Keypad (Password protected)
Field Calibration of Input and retransmission output thro’ software
Accuracy:
- For Rate display: +/- 0.25% of fullscale+1 digit,
- For Totaliser: +/- 0.45% of fullscale+1 digit
OPTIONS:
- Serial Interface: RS-232/RS-485 (MODBUS protocol supported)
- Isolated re-transmission
