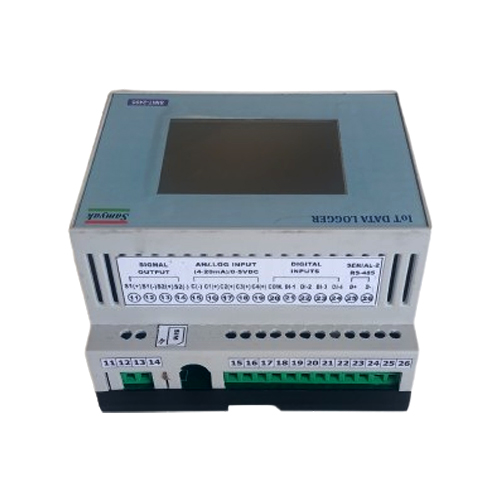

IoT Data logger : SMIT 2495
Specifications:
Samyak has come up with a range of products suitable for IoT applications.
- SMIT 2495 is a Microcontroller based product with GSM interface for connecting
field instruments with computer software. - Collects real time data from field instruments and pushes data through Lan cable/ethernet cable to any local Computer.
- SMIT 2495 saves data in local non-volatile flash memory in case of network issues.
- Send data to the server when network connection is restored to avoid data loss.
- Supports MQTT, FTP, Http Protocols
General Specifications:
- Display: 3.2-inch touch screen
- Operating Supply : 24VDC / 2.5Amp
- Analog Input: upto 4 (4-20 mA / 0-10 VDC / 0-5 VDC)
- Digital Inputs: 2 from Potential free contacts
- Digital output: Two Signal Output
- Serial Port #1 : RS-232 / RS-485
- Serial Port #2 : RS-485
- Ethernet TCP/IP Interface optional
- SIM Card / Wi-Fi Interface to access the internet
- Internal Memory : 32 GB
- Enclosure: DIN rail mount, Plastic
Samyak GSM Gateway can be integrated with Third party (Existing) ERPs.
Samyak also provides Cloud solutions. Features of Samyak cloud solution:
- Hosted on Server
- Easily configurable
- Can connect to multiple Samyak GSM Gateway Devices
- Attractive Dashboard with all required data
- Live Data can be Monitored over internet
- Reports can be generated Over the Internet anywhere
- Trending and Different type of Graphs option available
- Multiple Users can access the System as per their Roles and Rights
- Easily Integrate with Customers ERPs and other Enterprise application
