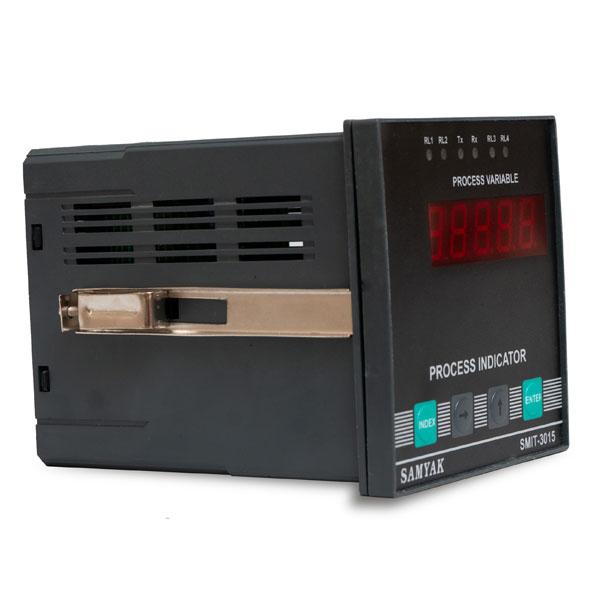

Process Indicator SMIT 3015

FEATURES:

• MICROCONTROLLER BASED
• Accepts Analog Input: 4.0-20.0mA, 0-20 ma, 0-5 V, 1-5 V
• Number of Inputs Channels: Up to 4
• Four Keys membrane Like Keypad
• 5-Digit Numeric 0.56” Red LED display for Process Variable
• Operating at 100-263VAC
• Transmitter Power supply: +24VDC/50mA
• Programmable parameters: Zero, Full scale, Decimal position
• Non-volatile Memory for storing configuration parameters
• Calibration thro’ software
• Options:
  • Retransmission: 4.0-20.0mA Isolated (Linear Proportional to Indication)
  • Four Relays (5A/230VAC) for Alarm
  • Communication: RS232 or RS-485 (2-wire), MODBUS protocol
• Mechanical Data: Mounting: Panel mounting
  • Cutout size: 92 mm x 92 mm
  • Outer dimension: 96 mm x 96 mm x 120 mm (Depth)
• Enclosure: Normal
