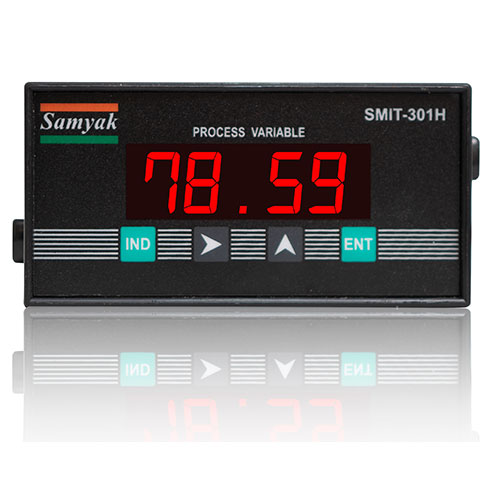

Process Indicator SMIT 301H

FEATURES:

• MICROCONTROLLER BASED
• Accepts Analog Input: 4-20 mA, 0-10 VDC, 0-5VDC
• Four Keys Membrane Like Keypad
• Display: 4-Digit Numeric 0.56”/0.8” Red LED display for Process Variable
• Operating: 24 VDC / 100-263VAC
• Transmitter Power supply: +24VDC/50mA
• Programmable parameters: Zero, Full scale, Decimal position
• Non-volatile Memory for storing configuration parameters
• Calibration thro’ software
• Options:
  • Retransmission: 4 -20 mA / 0-10 VDC Isolated (Linear Proportional to Indication)
  • Two Relays (5A/230VAC) for Alarm
  • Communication: RS232 or RS-485 (2-wire), MODBUS protocol
• Mechanical Data: Mounting: Panel mounting
  • Cutout size: 92 mm x 44 mm
  • Outer dimension: 96 mm x 48 mm x 120 mm (Depth)
• Enclosure: Normal
