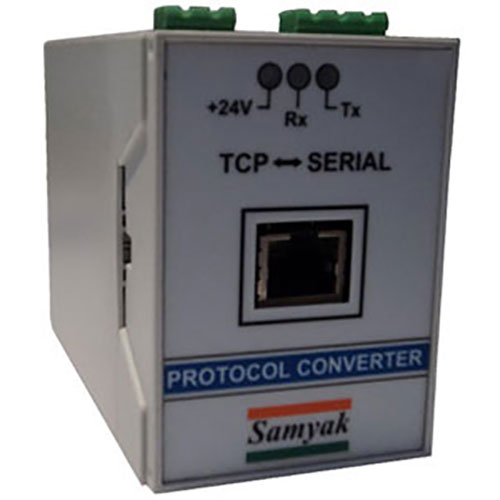

Protocol Converter SMIT 1935

Samyak is a Manufacturer of Protocol Converter

MAIN FEATURES :

• Protocol Converter is microcontroller based unit.
• The unit continuously receives data on RS-232 serial port in ASCII Format.
• As per pre-defined logic, converts this data and organize as a list of registers.
• Set of Data stored in these temporary registers can be accessed using MODBUS protocol thro’ RS-485 port or TCP/IP port.
• Unit IP address is programmable.
• User can also configure serial interface settings (data rate, parity etc.)

Other features :

• Operating voltage: 24 VDC +/- 20%
• DIN Rail mount enclosure
• LED indication for power status and communication activities

Enclosure :

• ABS Material
• Colour: Grey
• Mechanical dimensions: 55 (W) x 75 (H) x 109.5 (D) mm
• Mounting: Rail mounting or wall mounting
