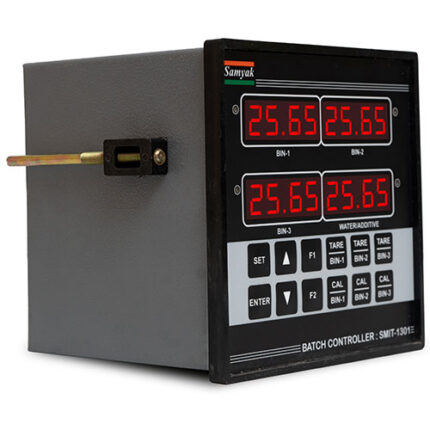

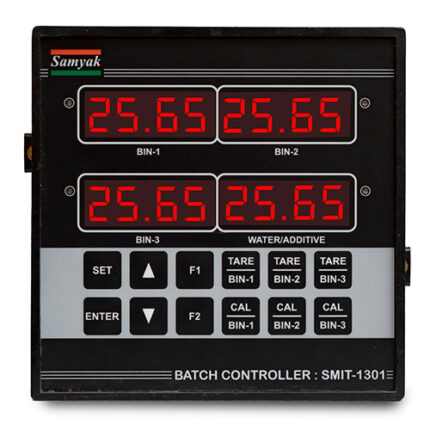

Reverse Mixture Plant controller SMIT 1301L (Three BIN Weight Indicator)

MAINS FEATURES OF THE UNIT:

• Micro controller based unit
• It has 64 KB EEPROM for data & parameter storage
• Operating Supply: 110-230VAC
• Keyboard: Eight keys membrane like Keypad
• Display: 4 digit LED (for each channel)
• Input: Load cell Sensor (Up to Four channel)
  • Excitation Voltage: 10VDC
• Number of components: Up to 4 (first channel)
• Discharge sequence Programmable
• Onboard RTC

Field Programmable parameters:

• Set points for four components
• Offset for four components
• Minimum weight to start new batch
• Gate Time: delay time between feeding of the four components
• Dead Weight: Minimum to start a new batch
• Control Outputs: Total 4 relay outputs:
  • Four relays to control Feeding of components
• Digital Inputs: 2 digital inputs (One for water metering & one for remote command)
• Calibration: Offset & Span calibration through software using keypad
• Serial Interface: RS-232/RS-485 (for Printer/Computer/HMI/Pen drive module)
• Mechanical Data: Mounting: Panel mounting
  • Cutout size: 138 mm x 138 mm
  • Outerdimension:144mm(W)x144mm(H)x125mm (Depth)
  • Enclosure: Metallic, Powder coated, General Purpose
