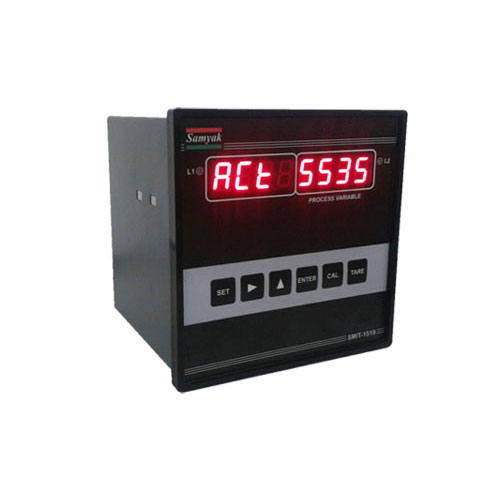

Reverse Mixture Plant Weight Indicator SMIT 1519 (Single BIN Weight Indicator)
Specifications :
- It has 64 KB EEPROM for data & parameter storage
- Operating Supply: 110-230VAC
- Keyboard: Six keys membrane like Keypad
- Display: 4 digit LED
- Input: Load cell Sensor (Single channel)
- Excitation Voltage: 10VDC
- Field Programmable parameters:
- Set points for component
- Control Outputs: Total 1 relay outputs:
- 1 relay to control Feeding of components
- Calibration: Span calibration through software using keypad
- Mechanical Data: Mounting: Panel mounting
- Cutout size: 138 mm x 138 mm
- Outer dimension: 144mm(W) x144mm (H) x125mm (Depth)
- Enclosure: Metallic, Powder coated, General Purpose
