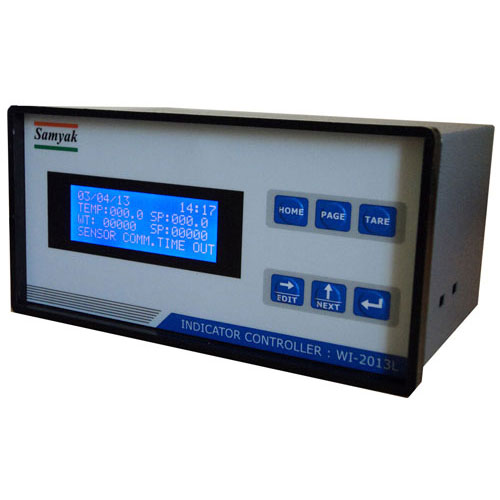

Weight Indicator WI 2013L
This is a micro controller based Indicator unit. It is highly versatile, accurate. It displays engineering value of analog signal (mV) input from the load cell.
Features :
- On-board high resolution ADC.
- Filtering : Analog & Digital
- Sampling : 15 readings/second
- Power Supply : 110-230VAC, 50 Hz.
- Input : 4-wire Load cell, Up to Four Single Load cell with 300 Ohms Resistor
- Options :
- Outputs : Six Relay outputs
- Retransmission : 4-20 mA/0-10V Proportional indicated weight
- RS-232/485 Serial Port for communication with remote display/ Printer/ Computer
- Remote input for GROSS/NET, TARE and Zero functions
- Display : 20 Character x 4 Line LCD with back lit
- Key board : six keys membrane like
- Programmable Parameters :
- Decimal Point, Capacity, Display Resolution, Grad, Zero Track Band, Zero Range
- Configuration Data are stored in serial NVRAM, Battery backup not required
- Calibration through front keypad(Offset: ‘Z’ & ‘S’ stored in NVRAM)
- Different Password for Calibration & normal operation
- Enclosure : Metallic, Powder coated, General Purpose, Panel Mounting type
- Dimension:
- Outer : 192 mm (W) x 96 mm (H) x 110 mm (D)
- Cutout : 186 mm (W) x 92 mm (H)
