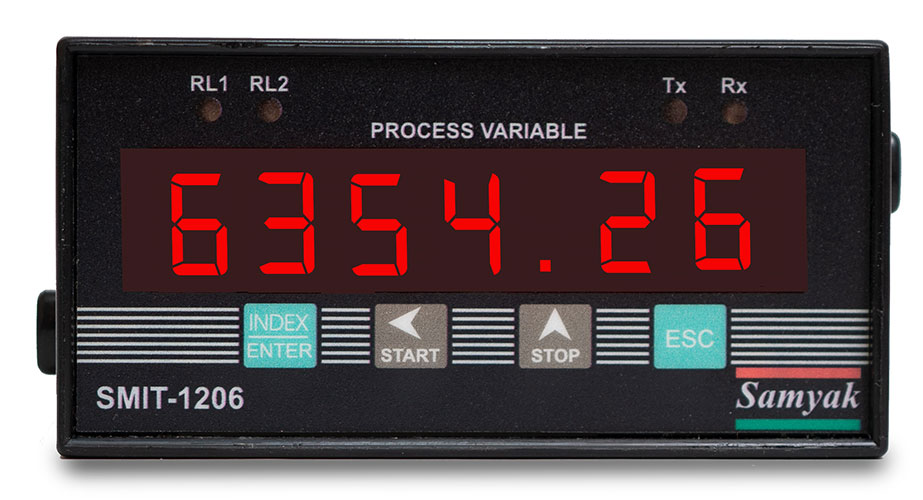

6 Digits Counter
THIS IS A MICROCONTROLLER BASED UNIT. The unit accept various types of field inputs. It displays engineering value of the input & performs integration. The unit can be used as Flow Rate Indicator, Totaliser, Counter or Batching Controller.
SPECIFICATIONS:
- Analog Input: 4.0-20.0mA/0-20mA/0-5V/1-5V (factory set)
- Pulse Input: OC type, Source, Sink, Potential Free
- Operating Supply:110-230 VAC +/-10% or 24VDC
- Transmitter Power Supply: +24V DC +/- 5%, 50 mA
- Field Programmable parameters:
- Zero, Full scale, Decimal position, Time Base for Totaliser, Set points for Alarm/Batching, K-Factor
- K-Factor settable in the range of x.xxxxx to xxxxxx
- Reset Totaliser: Through KB (Password Protected)
- Full Scale range: 0 to 999999
- Default display: Selectable between Flow rate & Totaliser
- Display: Six Digit 0.56" 7-Segment Red LED
- All parameters/Settings are stored in serial EEPROM.
- Calibration: Through software using keypad
- Options:
- Serial Interface: RS-232/RS-485 (MODBUS)
- Retransmission: 4.0 to 20.0 mA Isolated Proportional to Indication
- Relays: Two, Rating: 2.0A/230VAC
- FP enclosure
- Mechanical Data: Mounting: Panel mounting
- Cutout size: 92 mm (W) x 44 (H) mm
- Outer dimension: 96 mm (W) x 48 mm (H) x 130 mm (D)
- Enclosure: Plastic, General Purpose Panel Mounting Type
